j5create JTD568 mobile device dock station
j5create JTD568 mobile device dock station
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 01 - Oct 05
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Performance | |
|---|---|
| Basic device type | Universal |
| Brand compatibility | Universal |
| Product colour | Grey |
| Material | Aluminium |
| Maximum refresh rate | 240 Hz |

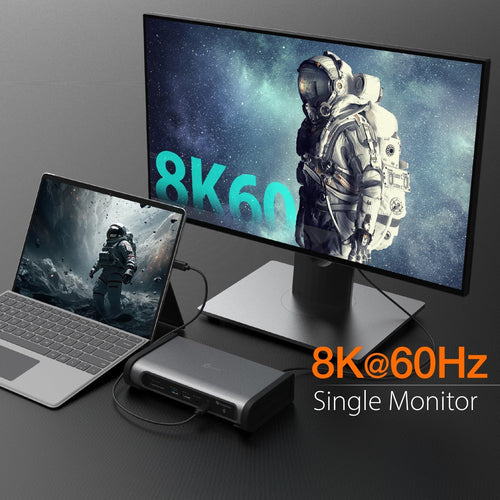

| Maximum resolution | 7860 x 4320 pixels |
| Data transfer rate | 40 Gbit/s |

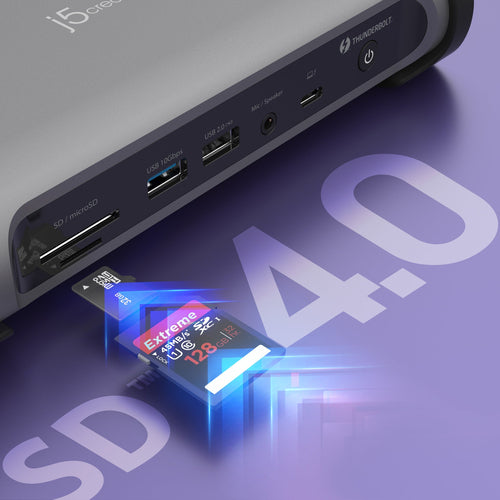

| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |

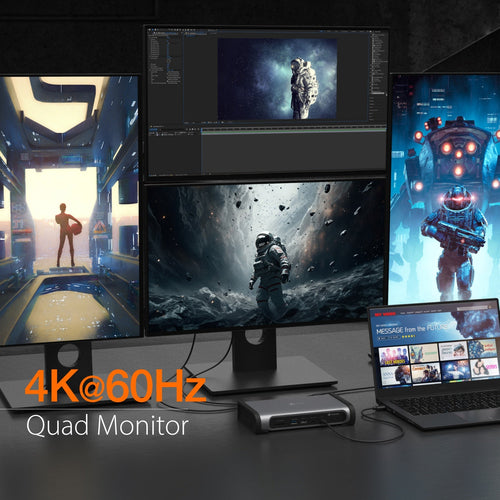

| Number of displays supported | 4 |
| Network | |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |

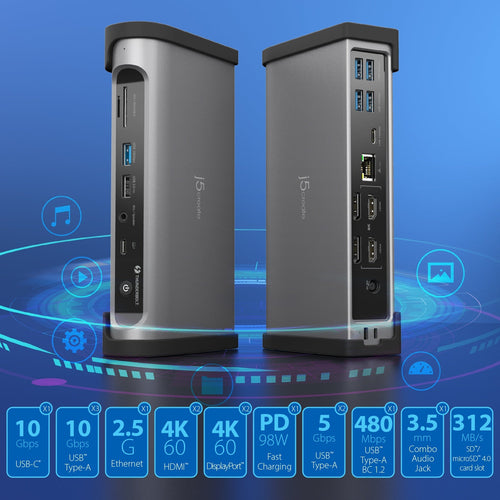

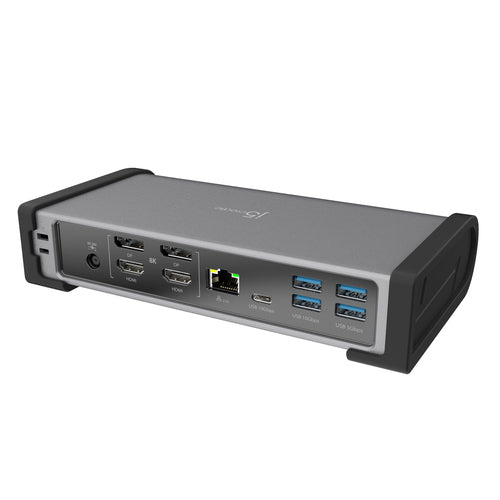

| Ports & interfaces | |
| Docking connector type | USB Type-C |
| USB hub | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 98 W |
| Audio output | 3.5 mm |
| Combo headphone/mic port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| AC input voltage | 20 V |
| Weight & dimensions | |
| Width | 201 mm |
| Depth | 109 mm |
| Height | 43 mm |
| Weight | 681 g |
| Packaging content | |
| Cables included | USB Type-C |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
