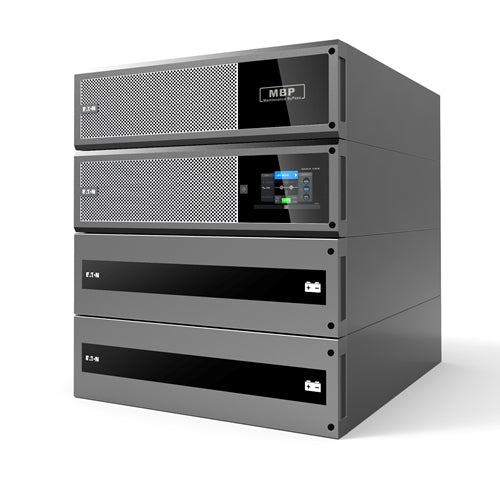

Eaton 9SX (AP) uninterruptible power supply (UPS)
Eaton 9SX (AP) uninterruptible power supply (UPS)
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 01 - Oct 05
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Response time | 0 ms |
| Number of input phases | 1/3 |
| Number of output phases | 1/3 |
| Efficiency | 94% |
| Efficiency (On-line mode) | 96% |
| Efficiency (ECO mode) | 98.8% |
| ECO mode | Yes |
| Power protection features | Short circuit |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery capacity | 9 Ah |
| Typical backup time at full load | 2.4 min |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Product colour | Black |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 589 mm |
| Height | 129 mm |
| Weight | 23.7 kg |
| Packaging data | |
| Package weight | 27.5 kg |
