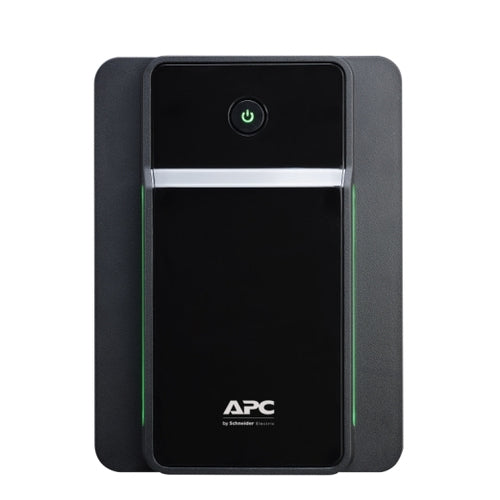

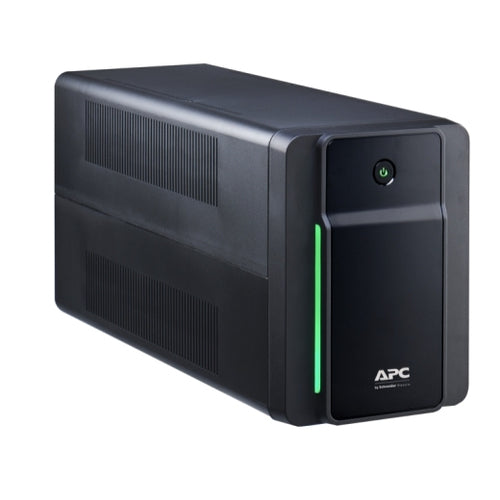

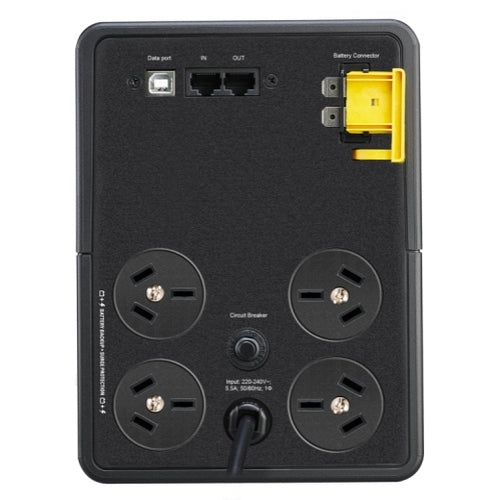

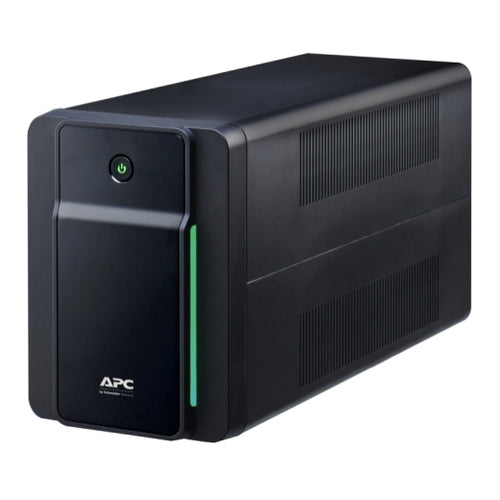

APC BX1200MI-AZ uninterruptible power supply (UPS)
APC BX1200MI-AZ uninterruptible power supply (UPS)
Oops! Looks like you just missed it!
-
Estimated delivery: Oct 01 - Oct 05
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.2 kVA |
| Output power | 650 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.54 |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery |
| Ports & interfaces | |
| AC outlet types | C14 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 108 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Battery weight | 8.6 kg |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 7.6 kg |
| Battery width | 23.5 cm |
| Battery depth | 49.5 cm |
| Battery height | 29.7 cm |
