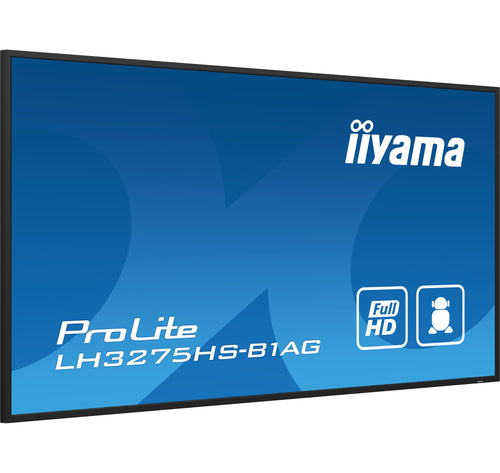

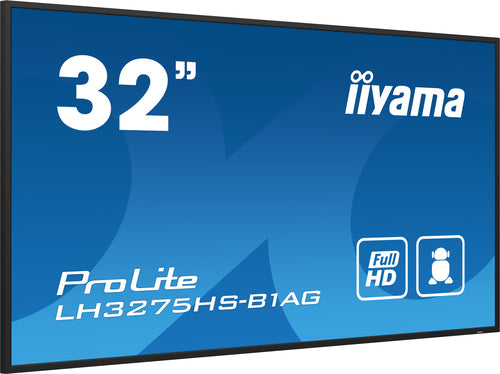

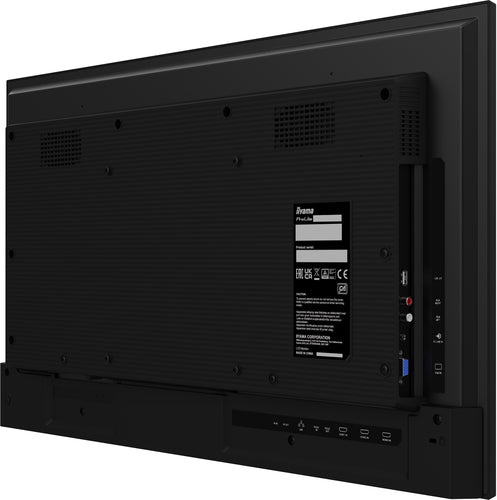

iiyama LH3275HS-B1AG Signage Display
iiyama LH3275HS-B1AG Signage Display
Available stock: 1
-
Voraussichtliche Lieferung: Jul. 16 - Jul. 20
Teilen Sie dieses Produkt
Abholverfügbarkeit konnte nicht geladen werden
Informationen
Informationen
Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugriff auf Ihre Kreditkarteninformationen.
| Display | |
|---|---|
| Panel type | IPS |
| Display diagonal | 80 cm (31.5") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.364 x 0.364 mm |
| Active display area (W x H) | 698.4 x 392.85 mm |
| Display diagonal (metric) | 80 cm |
| Maximum frame rate | 60 fps |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| RGB colour space | sRGB |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

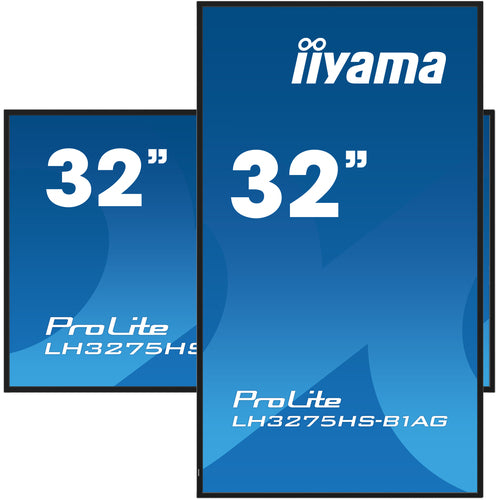

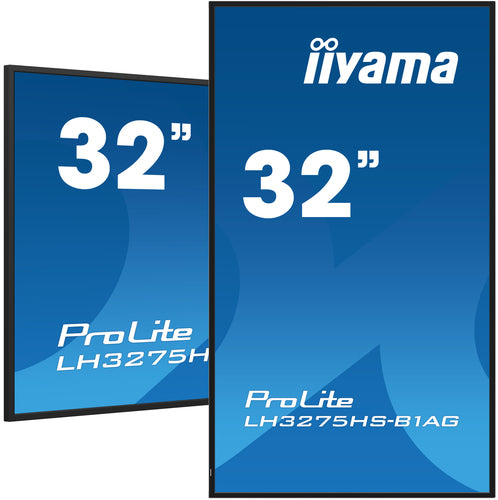

| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.19 cm |
| Bezel width (side) | 1.19 cm |
| Bezel width (top) | 1.19 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 44000 h |
| Power | |
| Power consumption (typical) | 46 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 45.7 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Weight & dimensions | |
| Display width | 725.5 mm |
| Display depth | 54 mm |
| Display height | 421.8 mm |
| Display weight | 5.2 kg |
| Width | 725.5 mm |
| Depth | 54 mm |
| Height | 421.8 mm |
| Weight | 5.2 kg |
| Packaging data | |
| Package width | 824 mm |
| Package depth | 119 mm |
| Package height | 554 mm |
| Package weight | 7.3 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |

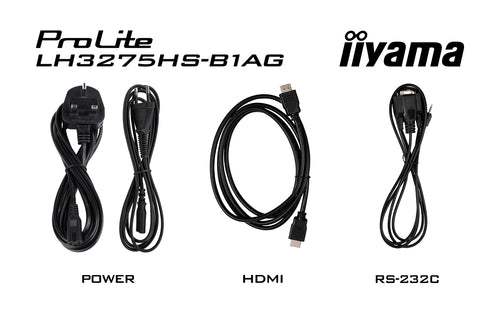

| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Technical details | |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, Group ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced option reset) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Other features | |
| Quick start guide | Yes |
| Power supply type | Internal |
| Housing material | Metal |
