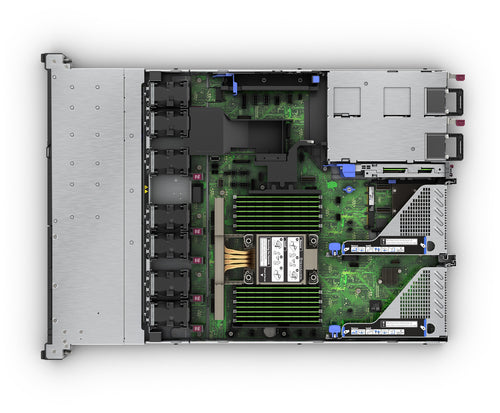

HPE ProLiant DL320 Gen11 server
HPE ProLiant DL320 Gen11 server
Available stock: 3
-
Voraussichtliche Lieferung: Jul. 16 - Jul. 20
Teilen Sie dieses Produkt
Abholverfügbarkeit konnte nicht geladen werden
Informationen
Informationen
Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugriff auf Ihre Kreditkarteninformationen.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor model | 6526Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.9 GHz |
| Performance cores | 16 |
| Processor cores | 16 |
| Processor cache | 37.5 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 4 x 32 GB |
| Maximum internal memory | 2 TB |
| Storage | |
| Maximum storage capacity | 24 TB |
| Total storage capacity | 0 GB |
| HDD interface | SATA |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| SSD interface | PCI Express 4.0 |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs. |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Performance | |
| Remote administration | iLO 6 ASIC |
| Management platform | Included - HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced. |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle Linux and Oracle VM Citrix Community Enterprise Linux (CentOS, Alma Linux, Rocky Linux) |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 2 |
| Number of main power supplies | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 9144 m |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 434.6 mm |
| Depth | 664.7 mm |
| Height | 42.8 mm |
| Other features | |
| Standard fans | 7x High Performance Fans |
| Storage drive type | None ship standard, 8 SFF supported |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. |
| Number of processors supported | 1 |
