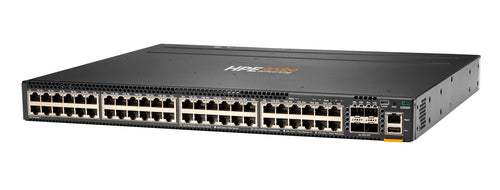

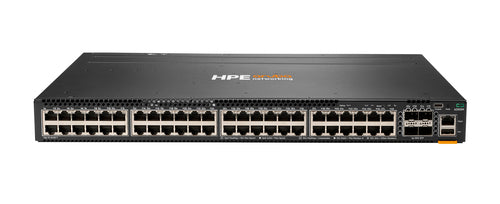

HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch

Informationen

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]

Zahlung & Sicherheit

Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugriff auf Ihre Kreditkarteninformationen.

HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch

Name: HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch
Brand: HPE
SKU: JL663A
Price: 10328.12 EUR
Availability: InStock

1 people are viewing this product

€10.328,12 EUR

€10.328,12 EUR ~~€14.149,52 EUR~~

Versand wird beim Bezahlvorgang berechnet.

HPE Aruba Networking CX 6300M 48-port 1GbE and 4-port SFP56 Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Verkäufer: HPE

Typ: Network Switches

Available stock: 5
🚨 Hot Demand! Only 5 left — grab yours before it's gone! 💥

Kostenloser Versand ab 2000 $

Voraussichtliche Lieferung: Jul. 17 - Jul. 21

Informationen

Zahlung & Sicherheit

Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugriff auf Ihre Kreditkarteninformationen.

Aktie:

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Console port	USB
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Policy-based routing	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Optical fiber
Transmission distance (max)	10 km
Data transmission
Switching capacity	496 Gbit/s
Throughput	369 Mpps
MAC address table	32000 entries
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Number of queues	8
Packet buffer memory	8 MB
Security
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP entries	8000
SSH/SSL support	Yes
Multicast features
Multicast support	Yes
IPv4 multicast entries	8000
IPv6 multicast entries	8000
Number of multicast groups filtered	4000
MLD entries	4000
Protocols
Routing protocols	OSPF, OSPFv3
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Airflow direction	Front-to-back airflow
Number of fans	2 fan(s)
Performance
Physical stacking (units)	10
Built-in processor	Yes
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Noise level	28.7 dB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	75 W
Power consumption note	Idle: 56W 100% Traffic Rate: 75W
Power supply note	2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU.
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Latency	1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Memory and processor	CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
I/O ports	48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Performance management	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial)	4.6 kg (10.1 lbs)
Dimensions (W x D x H) (imperial)	43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2")
Fan	Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan trays required. Optional second fan tray ordered separately. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4600 m
Weight & dimensions
Width	44 mm
Depth	442 mm
Height	385 mm
Weight	4.95 kg
Packaging content
Rack mount kit	Yes
Certificates
Certification	EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010
Logistics data
Harmonized System (HS) code	85176990
