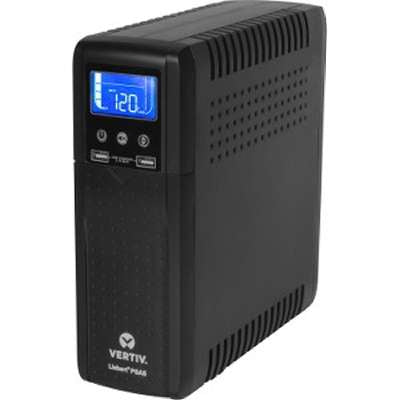

Vertiv Liebert PSA5-500MT120 uninterruptible power supply (UPS)
Vertiv Liebert PSA5-500MT120 uninterruptible power supply (UPS)
Available stock: 3
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
-
Estimated delivery: Dec 10 - Dec 14
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.5 kVA |
| Output power | 300 W |
| Waveform | Sine |
| Input operation voltage (min) | 86 V |
| Input operation voltage (max) | 143 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 105 V |
| Output operation voltage (max) | 143 V |
| Output frequency | 60 Hz |
| Output voltage regulation | 0.5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 316 J |
| Response time | 6 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 90% |
| Noise level | 40 dB |
| Surge protection | Yes |
| Power protection features | Over current, Short circuit |
| Ports & interfaces | |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 10 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB port type | USB Type-A |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 8 min |
| Design | |
| Cable length | 1.8 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | FCC, EN61000-4-5, ISTA |
| Packaging content | |
| Manual | Yes |
| Safety regulation & standards | |
| Safety | cTUVus, CSA 22.2 no. 107.3:2014 |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 289 mm |
| Height | 280 mm |
| Weight | 13.4 kg |
| Packaging data | |
| Package width | 158 mm |
| Package depth | 360 mm |
| Package height | 369 mm |
| Package weight | 14.6 kg |
