StarTech.com PEXUSB314A2V2 interface cards/adapter

StarTech.com PEXUSB314A2V2 interface cards/adapter

StarTech.com PEXUSB314A2V2 interface cards/adapter

StarTech.com PEXUSB314A2V2 interface cards/adapter

Infomations

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A

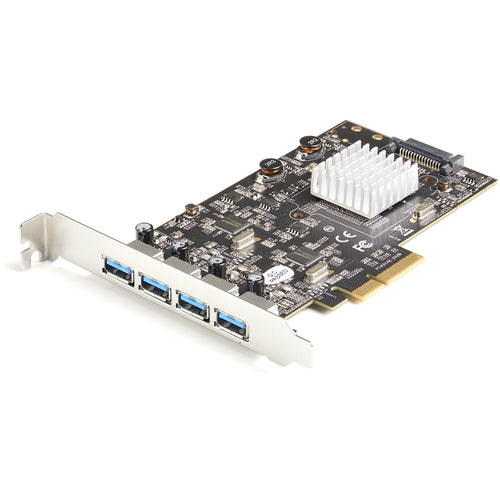

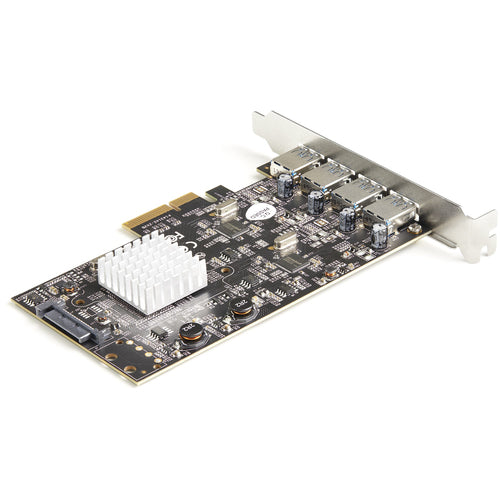

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

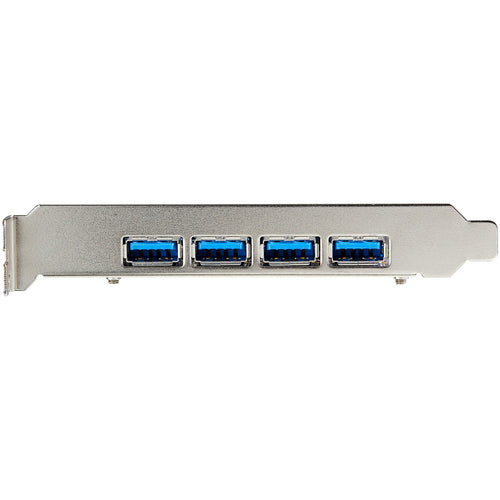

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

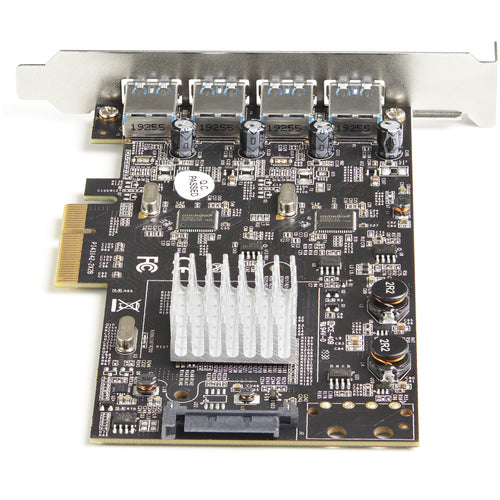

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

StarTech.com PEXUSB314A2V2 interface cards/adapter

StarTech.com PEXUSB314A2V2 interface cards/adapter

1 people are viewing this product

$105.95 USD

$105.95 USD ~~$116.55 USD~~

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.1/3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), PCIe 3.0, SATA 15-pin, Black, Metallic, 40000 h

Vendor: StarTech.com

Type: Interface Cards/Adapters

SKU: PEXUSB314A2V2

Available stock: 34

★

Free Shipping over $1000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 10 - Dec 14

Infomations

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Ports & interfaces
Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Internal SATA ports quantity	1
SATA power connector type	SATA 15-pin
Design
Internal	Yes
Product colour	Black, Metallic
Mean time between failures (MTBF)	40000 h
Features
Chipset	ASMedia - ASM3142, ASMedia - ASM1812
Data transfer rate (max)	10 Gbit/s
UASP support	Yes
Power
Output voltage	5 V
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Weight & dimensions
Width	150 mm
Depth	120 mm
Height	19 mm
Weight	125 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	207 mm
Package depth	144 mm
Package height	38 mm
Package weight	180 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	20 pc(s)
Master (outer) case width	440 mm
Master (outer) case length	420 mm
Master (outer) case height	320 mm
