Shuttle X50V8U3

Name: Shuttle X50V8U3
Brand: Shuttle
SKU: X50V8U3 WHITE
Price: 820.55 USD
Availability: InStock

Shuttle X50V8U3

1 people are viewing this product

$820.55 USD

$820.55 USD ~~$1,099.54 USD~~

Shuttle All-In-One Barebone X50V8U3, 15.6\" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation, All-in-One, All-in-One PC barebone, DDR4-SDRAM, Serial ATA III, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 65 W

Vendor: Shuttle

Type: PC/Workstation Barebones

SKU: X50V8U3 WHITE

Available stock: 4
🚨 Hot Demand! Only 4 left — grab yours before it's gone! 💥

Free Shipping over $1000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 10 - Dec 14

Infomations

The Shuttle XPC all-in-one X50V8U3 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation \"Comet Lake\". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	10th gen Intel® Core™ i3
Processor model	i3-10110U
Processor cores	2
Processor threads	4
Processor boost frequency	4.1 GHz
Processor frequency	2.1 GHz
Built-in processor	Yes
Processor lithography	14 nm
Processor cache	4 MB
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Memory
Memory slots type	SO-DIMM
Maximum internal memory	64 GB
Supported memory clock speeds	2666 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
Non-ECC	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
SSD form factor	2.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	1
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Maximum resolution	3840 x 2160 pixels
Display
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	HD
Aspect ratio	16:9
Display brightness	220 cd/m²
Panel type	LCD
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.2

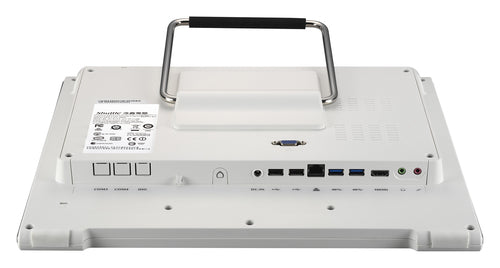

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	1.4a
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Design
Chassis type	All-in-One
Product colour	White
Cooling type	Passive
On/off switch	Yes
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Product type	All-in-One PC barebone
Performance
BIOS type	AMI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Processor special features
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Execute Disable Bit	Yes
Intel TSX-NI	No
Intel Stable Image Platform Program (SIPP)	No
Intel Clear Video Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Logistics data
Harmonized System (HS) code	84713000
Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating system installed	No
Power
Power supply type	External AC adapter
Power supply	65 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	391 mm
Depth	42 mm
Height	327 mm
Weight	3.5 kg
Package weight	4.2 kg
Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Drivers included	Yes
