ATEN CL1308N KVM Switch - 8 Ports, Rack Mount, 1280x1024 Resolution

Infomations

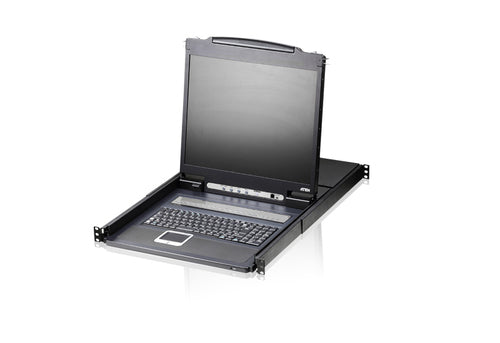

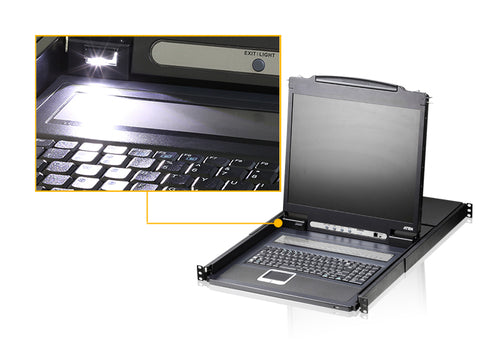

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

The CL1308 LCD KVM Switch features an integrated 19\" LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
- Integrated KVM console with 19\" LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profi le for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ATEN CL1308N KVM Switch - 8 Ports, Rack Mount, 1280x1024 Resolution

Name: ATEN CL1308N KVM Switch - 8 Ports, Rack Mount, 1280x1024 Resolution
Brand: ATEN
SKU: CL1308N
Price: 964.72 USD
Availability: InStock

ATEN CL1308N KVM Switch - 8 Ports, Rack Mount, 1280x1024 Resolution

1 people are viewing this product

$964.72 USD

$964.72 USD ~~$1,205.90 USD~~

Manage multiple servers efficiently with the ATEN CL1308N KVM Switch. This robust switch allows you to control up to 8 computers using just one keyboard, mouse, and monitor setup, making it an ideal solution for businesses requiring quick and easy access to multiple systems.

Designed for seamless integration into server environments, the CL1308N features a compact 1U form factor for easy rack mounting and boasts a resolution of 1280 x 1024 pixels, ensuring clear visuals while you work.

Resolution: 1280 x 1024 pixels
Rack mounting capability
Power consumption: 22.9 Watts
Compact 1U design
Color: Black

Vendor: ATEN

Type: KVM Switches

SKU: CL1308N

Available stock: 3
🚨 Hot Demand! Only 3 left — grab yours before it's gone! 💥

Free Shipping over $1000

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Estimated delivery: Dec 10 - Dec 14

Infomations

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

The CL1308 LCD KVM Switch features an integrated 19\" LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
- Integrated KVM console with 19\" LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profi le for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Share:

Ports & interfaces
Number of computers controlled	8
Keyboard port type	PS/2
Mouse port type	USB
Audio connections	No
Performance
Maximum resolution	1280 x 1024 pixels
Scan interval	1 s
DDC2B support	Yes
Hot-swap	Yes
Design
Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Metal, Plastic
LED indicators	Yes
Display
Built-in display	Yes
Display	LCD
Display diagonal	48.3 cm (19")
On Screen Display (OSD)	Yes
Power
Input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	22.9 W
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	689.2 mm
Depth	483 mm
Height	44 mm
Weight	12.6 kg
Packaging content
Manual	Yes
