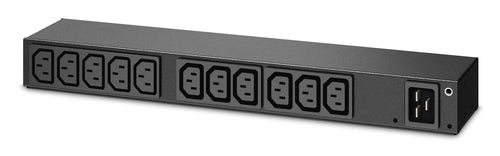

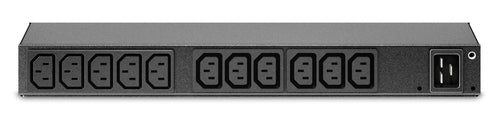

APC AP6020A power distribution unit (PDU)
APC AP6020A power distribution unit (PDU)
Available stock: 19
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
-
Estimated delivery: Dec 10 - Dec 14
Share this product
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 13 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Weight & dimensions | |
| Width | 44 mm |
| Depth | 93 mm |
| Height | 388 mm |
| Weight | 1.5 kg |
| Packaging data | |
| Package weight | 2.02 kg |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 38.04 |
