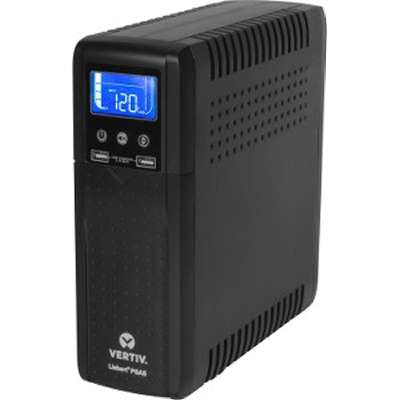

Vertiv Liebert PSA5-500MT120 uninterruptible power supply (UPS)
Vertiv Liebert PSA5-500MT120 uninterruptible power supply (UPS)
Available stock: 3
Get $20 off when you spend $1,000 or more! Learn more
-
Estimated delivery: Dec 04 - Dec 08
Share this product
Couldn't load pickup availability
Infomations
Infomations
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.5 kVA |
| Output power | 300 W |
| Waveform | Sine |
| Input operation voltage (min) | 86 V |
| Input operation voltage (max) | 143 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 105 V |
| Output operation voltage (max) | 143 V |
| Output frequency | 60 Hz |
| Output voltage regulation | 0.5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 316 J |
| Response time | 6 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 90% |
| Noise level | 40 dB |
| Surge protection | Yes |
| Power protection features | Over current, Short circuit |
| Ports & interfaces | |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 10 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB port type | USB Type-A |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 8 min |
| Design | |
| Cable length | 1.8 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | FCC, EN61000-4-5, ISTA |
| Packaging content | |
| Manual | Yes |
| Safety regulation & standards | |
| Safety | cTUVus, CSA 22.2 no. 107.3:2014 |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 289 mm |
| Height | 280 mm |
| Weight | 13.4 kg |
| Packaging data | |
| Package width | 158 mm |
| Package depth | 360 mm |
| Package height | 369 mm |
| Package weight | 14.6 kg |
